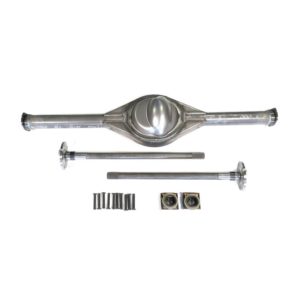

rear end housing with axles
Strange Axle tubes
Axle Seals
Axle bearings
8 T-Bolts
10 12mm drive studs
P65 Warning Label

9″ Rear End Housing With Axles 93 to 02 F Body

$1,250.00

-

SKU: TC250-1 Category:

Description

Trick Chassis 9″ Rear axle for 4th gen Camaro and Firebird 1993 to 2002



Below is what comes with it for the base price:

Brand new center fabricated  housing can  (STANDARD) Others charge $100 more

Internal axle tube gussets (STANDARD) Others charge $75 more

3″ .250 wall DOM axle tubes (STANDARD) Others charge $30 more

4 lower control arm mounting holes (STANDARD)

28, 31, 35 spline axle options (YOUR CHOICE)

Drive studs included 12mm, 1/2-2″,1/2-3″ (YOUR CHOICE)

Torque arm bracket is included

Housing vent included

wheel bearings included

Shipped bare steel

We can narrow for free (see options)

Options for additional charge:

T bolt brake hardware kit (easy install of your stock F body backing plates)

40 spline upgraded axles (gun drilled)

5/8 wheel studs

11 Hole narrowed lower brackets

Powder coat

Tow Loops

Fill and drain caps

Sway bar brackets

Coil over brackets

Coil over brackets with no spring perches added

Please call or email us for pricing and estimated time:

We offer full bolt in assemblies

Wishbone application

Only torque arm and no other bracket setups

Extreme custom applications (we have done many of these)

Crate and freight available

International shipping* Our website will not calculate dutys/taxes/shipping/broker setups.

Important information:

When selection “differential options”  This is telling us what center section that you already have, or are planning on using. The axle lengths will be cut accordingly. If you purchase this for a spool then later down the road want a clutch lock or S-trac or True Track ect ect. One axle may not fit and will need to be trimmed down. Or if you bought this for anything but a spool, and then use a spool center section, the axle could end up being too short on one side. You will not have enough spline engagement.

Axles are shipped with no bearings on them. Your stock backing plate needs to go on first then the bearings get pressed on behind them.

Axles are dropped shipped and may show up at an earlier or later time than the housing.

non adjustable aftermarket torque arms do not fit without modification.

We recommend adjustable torque arms only





Additional information

Weight 100 lbs
Dimensions 60 × 19 × 14 in
Brand

Powder Coat

Gloss Black, Gloss Red, Semi Gloss Black
Model Year

1993 – 1997, 1998 – 2002
Axle Splines

28 Moser Axles, 28 Strange Engineering Axles, 31 Spline Moser Axles, 31 Strange Engineering Axles, 35 Spline Moser Axles, 35 Spline Strange Engineering Axles, 40 Spline Strange Engineering
ABS

4 channel ABS ring, None
Back Brace

None, Yes
Wheel Studs (Screw In)

1/2" Wide – 2" Long, 1/2" Wide – 3" Long, 12MM (Stock), 5/8" Wide – 3" Long
Fill & Drain Plug

Both Fill & Drain, Drain, Large Billet Fill, None
Housing Ends

Billet Big Bearing New Style, Billet Big Bearing Old Style, Billet Symmetrical Ends, Flush Mount GM (Can Use Stock F-Body Brakes)
Sway Bar Brackets

None, Yes
Rear End Length

1" Shorter (Each Side), 1/2" Shorter (Each Side), 2" Shorter (Each Side), 3" Shorter (Each Side), Stock Width
