8.8 G-Body Swap Kit vs. Ford 9-Inch: Which Is Better for Your G-Body Drag Racing Build?

8.8 G-Body Swap Kit vs. Ford 9-Inch: Which Is Better for Your G-Body Drag Racing Build?

If you’re piloting a G-Body: whether it’s a Monte Carlo, Regal, Cutlass, or Malibu: you already know the weak link in the chain. That factory 7.5-inch “glass” rear end is a ticking time bomb the second you add real power and a set of sticky tires. We’ve all seen it: one hard launch on a prepped track, and suddenly your differential is a bucket of metal confetti.

At Trick Chassis, we’re in the business of making sure that doesn’t happen. When it’s time to step up your game, you’re usually looking at two main contenders: the budget-friendly Ford 8.8-inch swap or the nuclear option: the Ford 9-inch.

Both are massive upgrades, but which one is right for your specific build? We’re breaking down the durability, the costs, and the installation headaches so you can spend less time under the car and more time knocking down PB after PB.

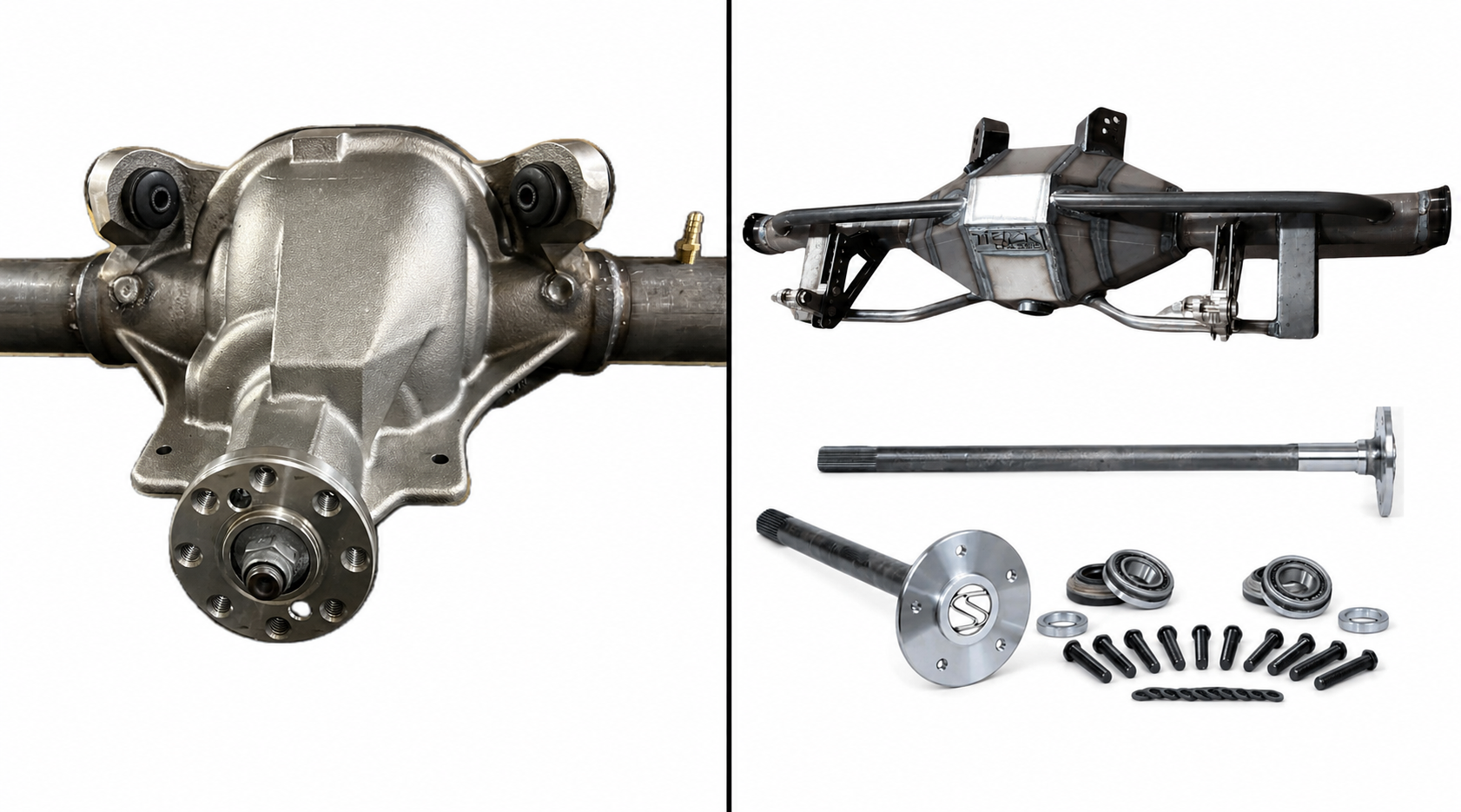

The Budget Beast: The Ford 8.8-Inch Swap

The Ford 8.8 is widely known as the “junkyard hero.” Found under millions of Mustangs, it’s a robust, relatively lightweight unit that can handle a surprising amount of abuse. For many G-Body owners, the 8.8 is the gateway to faster ETs without breaking the bank.

Why We Love the 8.8 for G-Bodies

The 8.8 is fantastic because it’s efficient. It has less parasitic power loss than a 9-inch, and it’s lighter. If you’re targeting the 500–700 horsepower range, a well-built 8.8 with 31-spline axles is practically unkillable on a street/strip setup.

Our G-Body 8.8 Swap Kit is designed specifically to take a Mustang 8.8 and drop it into your GM chassis with surgical precision. We don’t just give you some brackets and wish you luck; we focus on the physics.

Power to the Pavement: Technical Features

• Instant Center Correction: Swapping rear ends can mess up your suspension geometry. Our kit includes “Battle Box” upper frame mounts with multiple holes so you can dial in your instant center for a snarling launch.
• Double-Adjustable Arms: Our kit comes with double-adjustable upper and lower arms. This means you can set your pinion angle right on the car: no more pulling an arm off just to give it a half-turn.
• Spherical Bearings: To keep your suspension bind-free and moving smoothly, we use high-quality spherical bearings.
• Conversion U-Joints: To make the swap even easier, we offer a 3R to 1330 Conversion Joint to mate your stock G-Body driveshaft to the 8.8 yoke.

The Downsides of the 8.8

The biggest hurdle is the C-clip axle design. In a stock 8.8, if an axle snaps, there’s nothing holding the wheel and the broken shaft in the car. Most drag strips require C-clip eliminators once you’re running certain speeds for safety. Also, while the 8.8 is strong, once you start pushing past 800+ HP on a heavy-hitting trans-brake launch, you’re entering the “danger zone” for the housing itself. We do offer C-clip eliminator axle packages.

The Nuclear Option: The Outlaw Fab 9-Inch

If you’re planning to run deep into the 8s or you’re building a high-horsepower beast that will see constant track abuse, don’t play around. Go straight to the king. The Ford 9-inch is the undisputed heavyweight champion of the drag racing world, and our Outlaw Fab 9-inch is built to be the last rear end you’ll ever buy.

Built Light, Built Right

Our Fab 9 housings aren’t just heavy chunks of iron. We use meticulous fabrication techniques to create a housing that is incredibly rigid and strong, yet surprisingly light.

Why the 9-Inch Rules the Strip

• Bolt-In Axles: Unlike the 8.8, the 9-inch uses axle retainers at the housing ends. If an axle breaks, the wheel stays on the car. This is a massive safety win.
• Removable Third Member: This is the game-changer. Want to change your gear ratio for a different track? You can swap the entire center section on a workbench in minutes rather than fighting with shims and gears while lying on your back under the car.
• Infinite Growth: There is no limit to the aftermarket for the 9-inch. From 35-spline to 40-spline axles and exotic gear materials, the 9-inch can be built to handle 2,000+ HP.
• Extreme Durability: The 9-inch pinion is supported by a third bearing (the “pinion” bearing), which prevents the pinion from pulling away from the ring gear under extreme loads.

Head-to-Head: The Real Talk

Let’s get down to the brass tacks. You have a G-Body in the garage and a budget in your pocket. Which way do you go?

1. Cost Comparison

• 8.8 Swap: If you score a cheap Mustang 8.8 core, our swap kit gets you rolling for around $250–$650. It’s the king of “bang for your buck.”
• 9-Inch: A full Fab 9 setup is an investment. You’re looking at a higher entry price because you’re buying a brand-new, custom-fabricated housing and a high-performance center section. However, many guys find that by the time they “bulletproof” an 8.8 with axles, a girdle, and C-clip eliminators, they’ve spent almost as much as they would have on a 9-inch.

2. Ease of Installation

The 8.8 swap requires some mechanical aptitude. You’ll need to weld in our “Battle Box” upper mounts to the frame. It’s not a weekend project for a novice, but for any decent fabricator, it’s a straightforward afternoon.

Our Outlaw Fab 9-inch housings for G-Bodies are built as bolt-in units. We weld the brackets in the correct locations for you. It’s about as close to “plug and play” as you can get with a high-performance rear end.

3. Weight and Performance

The 8.8 is generally about 30–50 lbs. lighter than a 9-inch. It also has a more efficient gear design, meaning a tiny bit more power actually reaches the tires. In a class where every ounce and every horsepower counts, some racers prefer the 8.8 for these small gains. But for the average “big power” street/strip build, the safety and peace of mind of the 9-inch usually outweigh the weight savings.

The Final Verdict

So, which one wins?

Go with the 8.8 Swap Kit if:

• You’re on a tighter budget.
• Your power goals are under 750 HP.
• You want the lightest setup possible for a street/strip car.
• You don’t mind a little bit of welding to save some serious cash.

Go with the Outlaw Fab 9-Inch if:

• You’re pushing 800+ HP or plan to in the future.
• You want the safety of bolt-in axles for high-speed passes.
• You want the convenience of quick gear changes.
• You want a “one and done” solution that will handle anything you throw at it.

At the end of the day, we’re here to help you win. Whether you’re looking for a G-Body Instant Center Kit to fix your 8.8 geometry or a full-blown fabricated housing to dominate the 8.50 index, we’ve got your back.

Your build is a reflection of your passion and hard work. Don’t let a weak rear end stand in the way of your next win. Join the movement of builders who refuse to compromise on quality.

Ready to beef up your back end? Browse our G-Body suspension and rear-end components now!
