Do You Really Need a G-Body Frame Notch Kit? Here’s the Truth

If you’re running a G-Body, whether it’s a sinister Grand National, a clean Monte Carlo SS, or a sleeper Malibu, you already know the platform is one of the greatest canvases in the history of drag racing. It’s got the right wheelbase, a full frame, and a massive aftermarket. But eventually, every builder hits the same wall.

It’s not a horsepower wall. It’s not a transmission wall. It’s a physical piece of steel standing between you and the traction you need to go fast. We’re talking about the rear frame rails.

The question we get asked constantly at Trick Chassis is: “Do I really need a frame notch kit, or can I just make it work with what I’ve got?”

Today, we’re cutting through the noise and giving you the truth about G-Body tire clearance, the physics of the “pinch point,” and why a proper G-Body frame notch kit is the key to putting serious power to the pavement.

The G-Body “Pinch Point”: Why Size Matters

In stock form, the G-Body frame is surprisingly restrictive. From the factory, these cars weren’t exactly designed to house 12-inch wide racing slicks. The frame rails curve outward exactly where you need the most room for rubber.

For most guys, the journey starts with a set of 255s. They fit fine. Then you move up to the industry-standard 275/60R15 drag radial. This is where things get interesting. On an 8-inch wheel with the perfect backspacing, you can usually squeeze a 275 in there. You might have to roll the fender lips or give the inner wheel wells a “love tap” with a five-pound sledge, but it’ll go.

But here’s the problem: A 275 isn’t always enough.

When you start pushing 600, 800, or 1,000+ horsepower, you need more “meat” on the ground. You want to step up to a 295 or even a 315. That’s when the factory frame rail becomes a snarling beast of an obstacle.

The Truth About Stock Frame Limits

Let’s talk real-world numbers. If you’re keeping the stock frame, you’re essentially capped at a 10-inch wheel, and even then, it’s a tight squeeze.

• Stock Frame Max: ~275mm tire on a 10″ wheel.
• The Struggle: You’ll likely deal with rubbing during body roll, hard launches, or when the suspension fully compresses.
• The Modification: You’ll be trimming fender lips and hammering inner tubs until you’re blue in the face.

If your goal is a consistent, high-performance drag racing suspension setup, “making it fit” with a hammer isn’t just amateur, it’s inconsistent. When that tire grows at 130 mph through the traps, or when the car squats on a hard 1.30 sixty-foot, you don’t want the sidewall of your expensive radials rubbing against a sharp piece of factory steel.

When Do You Actually Need a Notch Kit?

We tell our customers that there are three specific scenarios where a frame notch kit becomes a “must-have” rather than a “maybe”:

1. You want to run 295s or 315s: If you’re looking at a 315/60R15, there is zero chance it’s fitting safely without moving those rails.
2. You’re tired of the “Hammer Method”: If you want a clean, professional build that looks as good underneath as it does on top, a notch kit is the only way to go.
3. You need deep backspacing: If you’re trying to tuck the wheels in for that perfect aggressive stance without the tires poking out past the fenders, you need to reclaim that space from the frame.

Power to the Pavement: The Trick Chassis Solution

At Trick Chassis, we didn’t just throw some scrap metal together and call it a kit. We designed our G-Body Rear Frame Notch Kit to be the ultimate solution for builders who demand durability and precision.

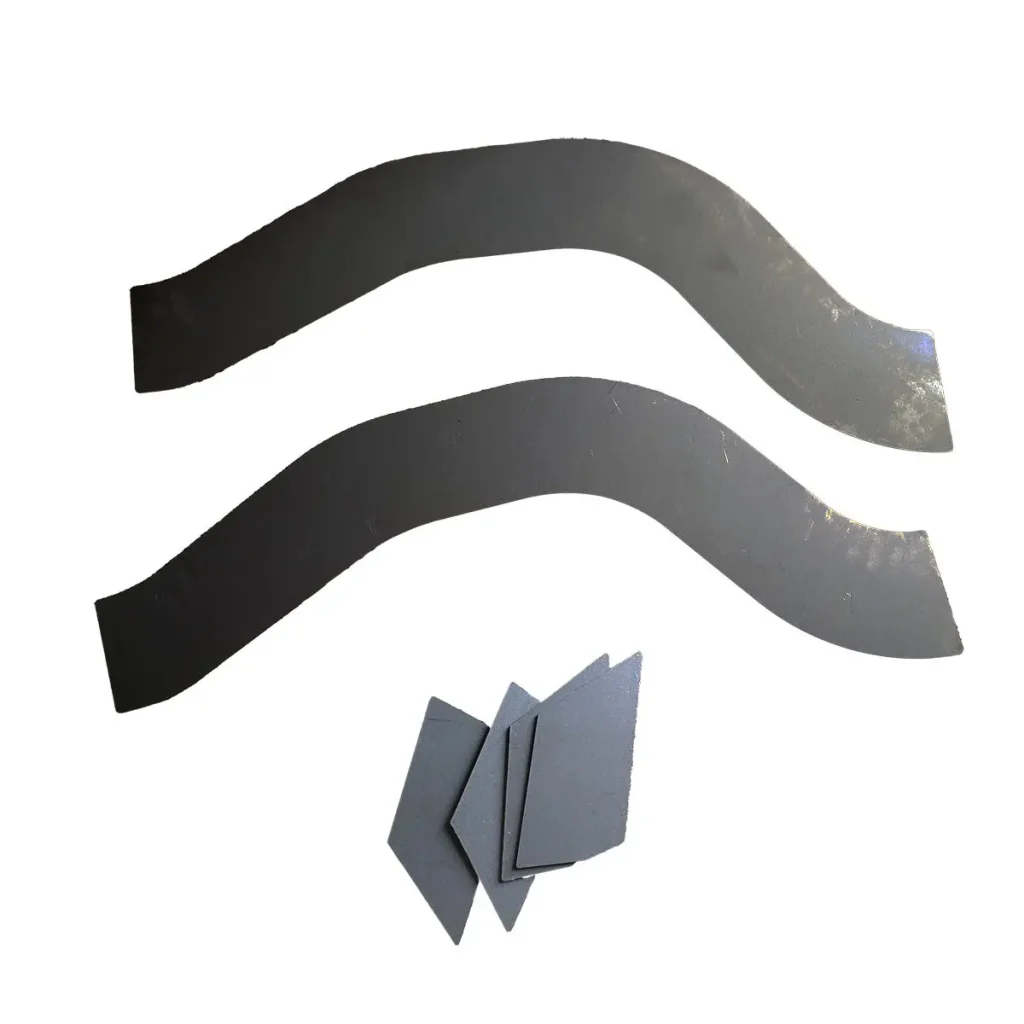

Our kit is engineered from 1/8″ high-strength steel, providing the perfect balance between weight savings and structural integrity. For just $85.00, you’re getting a precision-cut set of plates that allow you to cut out the restrictive factory “hump” and replace it with a boxed-in section that’s actually stronger than the original rail. We also offer ¼” plate for extra strength with non caged cars.

Why our kit stands out:

• Precision Fitment: Every piece is CNC-cut to ensure it lines up with your factory rails, reducing the time you spend grinding and measuring.
• Maximum Clearance: Our notch allows you to comfortably fit a 315mm tire on a 10″ or even 12″ wheel (when combined with mini-tubs).
• Structural Integrity: We know these cars take a beating. Our 1/8″ steel plates are designed to handle the torque of a high-horsepower launch without flexing or cracking.
• Affordability: We believe high-level fabrication should be accessible. At $85, it’s one of the best “bang-for-your-buck” upgrades in the G-Body world.

Pairing the Notch with the Right Hardware

Notching the frame is only half the battle. If you’re going to the trouble of creating all that extra room for tires, you need to make sure the rest of your GM G-Body suspension is up to the task.

To really get that beast to hook, we recommend pairing your notched frame with:

• Double Adjustable Control Arms: These allow you to fine-tune your pinion angle and center the axle perfectly in the newly notched wheel wells.
• Anti-Roll Bars: Keeping the car level is crucial when you’re running tight clearances. Our 1-5/8″ anti-roll bars ensure the body doesn’t twist and shove the frame into your tires.
• Outlaw Fab 9-Inch Rearend: If you’re building a car that needs a notch, you’re building a car that needs a robust rearend. Our Outlaw Fab 9-inch is proven to run deep into the 8s.

Built Light, Built Right: The Installation Reality

We won’t lie to you, installing a frame notch kit isn’t a “bolt-on” afternoon job. It requires a sawzall (or plasma cutter), a grinder, and a welder. You’re going to be cutting into the backbone of your car.

However, because our kit uses precision-measured plates, the guesswork is gone. You cut out the factory section, clean up the edges, and weld our plates in. It’s a job any competent DIY builder or local chassis shop can handle in a weekend.

The result? A chassis that’s ready for whatever horsepower you can throw at it, and a tire footprint that will actually get you down the track instead of spinning your life away.

The Verdict: To Notch or Not to Notch?

If you’re building a cruiser that will never see anything wider than a 255, you can skip it. But if you’re a serious enthusiast who values performance, safety, and a “built-not-bought” mentality, the answer is a resounding yes.

Don’t let a few inches of factory steel hold back your build. Stop fighting your frame and start giving your tires the room they need to breathe.

Ready to transform your G-Body? Check out our Rear Frame Notch Kit and let’s get that project moving. Whether you’re hitting the local Friday night drags or prepping for a Drag Week marathon, we’ve got your back with the parts that are built to survive.

Join the movement of builders who refuse to compromise. Let’s get to work.
