Nova Camaro 9-Inch Housing & Axles ’69-’79
$960.00
-

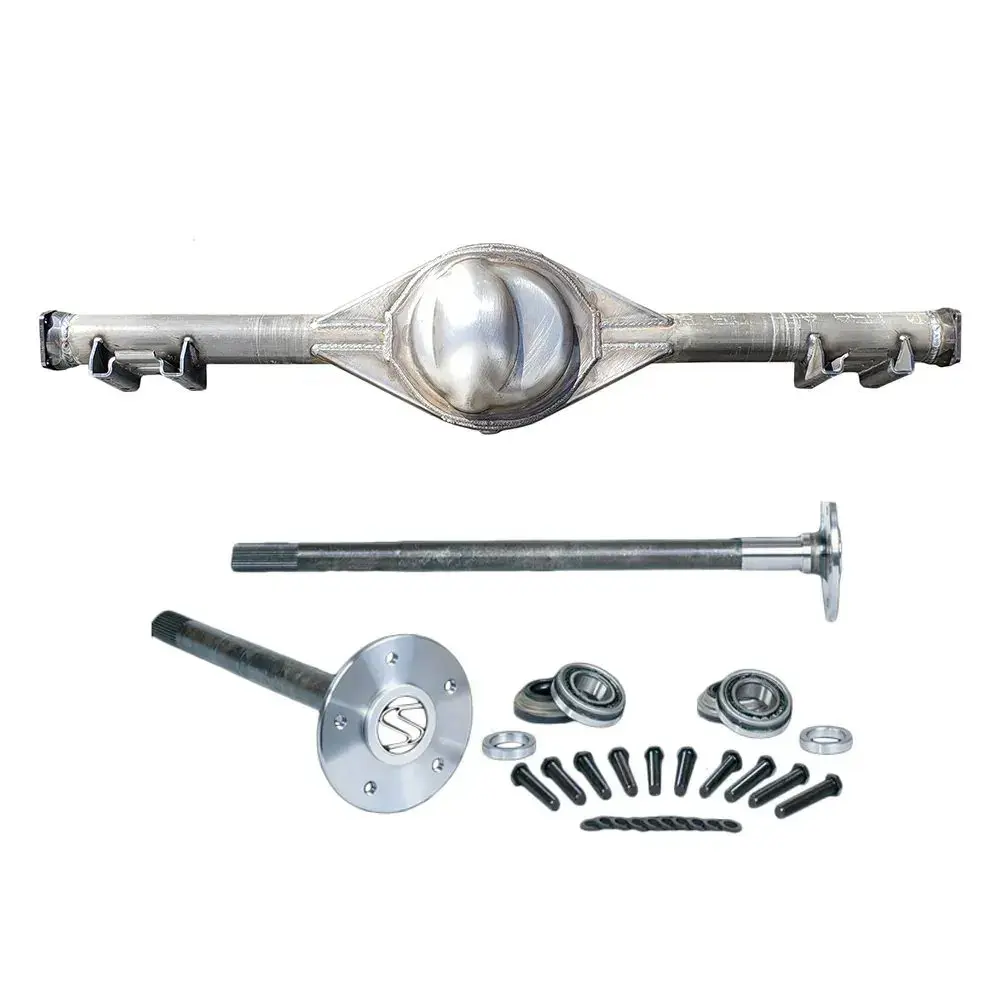

9-Inch Rear with Axles, Wheel Studs & Bearings
New Center Fabricated Can (STANDARD)
Internal Housing Gussets (STANDARD)
3″ – .250″ Wall Tubes (STANDARD)
Housing Studs Installed (STANDARD)
Comes with 10 Center Section Nuts & Vent (STANDARD)
Mono Leaf Pads (STANDARD)
Your choice of 28 – 31 – 35 Spline Axles (STANDARD)
1/2″ Wheel Studs 2″ or 3″ (STANDARD)
Options
Cal-Track Pads available
Many Housing End Choices
Bearing Retainer Options
Back Brace
Fill & Drain
T-Bolts
Brake Options
Powder Coating
Wheel Stud Upgrade to 5/8″
Important information:
When selecting “differential options” – This is telling us what center section that you already have or are planning on using. The axle lengths will be cut accordingly. If you purchase this for a spool, then later down the road want a clutch lock, S-trac or True Trac, etc., etc. – one axle may not fit & will need to be trimmed down. Or if you bought this for anything but a spool, & then use a spool center section, the axle could end up being too short on one side. You will not have enough spline engagement.
ATTENTION:
Brakes, Center Sections & Axles are drop shipped directly to your shipping address from the manufacturer & may arrive at different times. Tracking information will be sent if provided by the manufacturer. If you add the option to have your housing assembled, everything will be shipped from Trick Chassis.
| Weight | 100 lbs |
|---|---|
| Dimensions | 60 × 19 × 14 in |
| Powder Coat | Gloss Black, Gloss Red, Semi Gloss Black |
| Model Year | 1993 – 1997, 1998 – 2002 |
| Axle Splines | 28 Moser Axles, 28 Strange Engineering Axles, 31 Spline Moser Axles, 31 Strange Engineering Axles, 35 Spline Moser Axles, 35 Spline Strange Engineering Axles, 40 Spline Strange Engineering |
| ABS | 4 channel ABS ring, None |
| Back Brace | None, Yes |
| Wheel Studs (Screw In) | 1/2″ Wide – 2″ Long, 1/2″ Wide – 3″ Long, 12MM (Stock), 5/8″ Wide – 3″ Long |
| Fill & Drain Plug | Both Fill & Drain, Drain, Large Billet Fill, None |
| Housing Ends | Billet Big Bearing New Style, Billet Big Bearing Old Style, Billet Symmetrical Ends, Flush Mount GM (Can Use Stock F-Body Brakes) |
| Sway Bar Brackets | None, Yes |
| Rear End Length | 1″ Shorter (Each Side), 1/2″ Shorter (Each Side), 2″ Shorter (Each Side), 3″ Shorter (Each Side), Stock Width |
