Strange Evolution 2 Dynamic Drive Mount Front Brake Kit 1998-2002 Camaro & Firebird – Reuses OEM Hubs Evolution S Rotors, 2 Piston Billet Evolution 2 Calipers With DTC-30 Semi Metallic Pads

Designed Specifically For Drag Racing

Evolution Front Brake Kit
1998-2002 Camaro & Firebird
Reuses factory wheel hubs
17.83 lbs

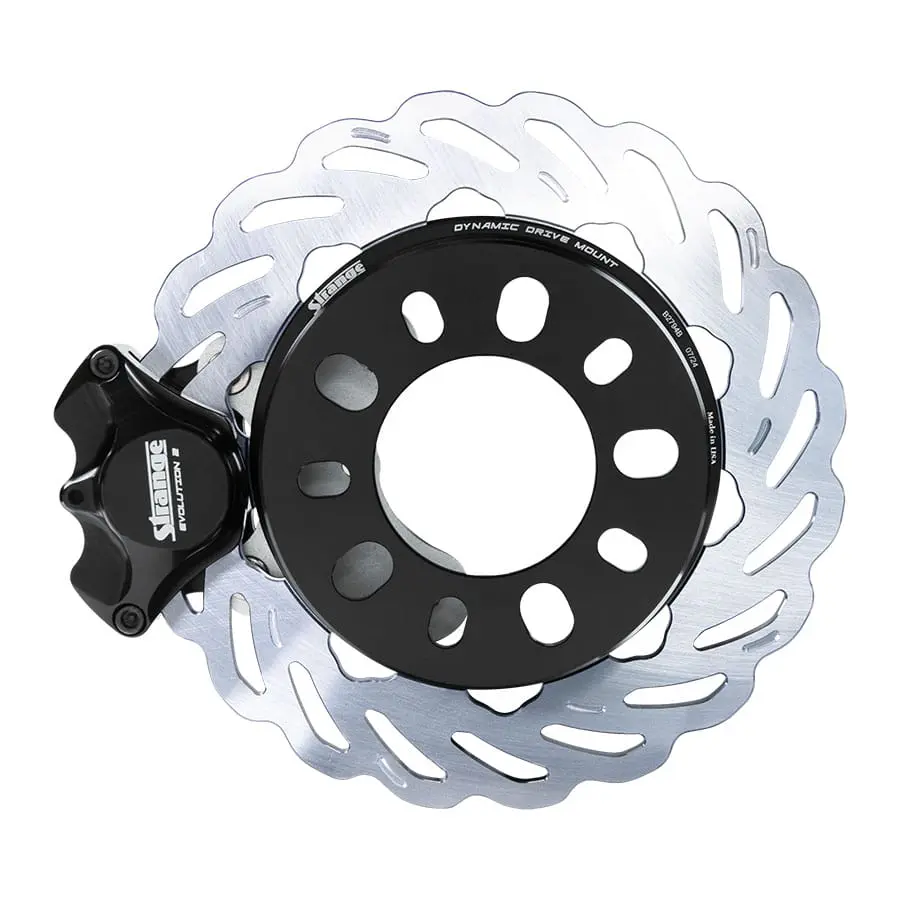

Evolution S Dynamic Drive Mount (DDM) Stainless Steel Rotors – B2798L / B2798R
• Evolution S Rotor mounts to Billet Aluminum DDM Hat – reducing rotating weight
• DDM system secures the rotor and allows for rotor thermal expansion – drastically reducing warping, coning, and cracking which are common with bolt retention designs
• DDM system design is secured by an internal Spirolox, eliminating heavy bolts and hardware- further reducing rotating weight
• Evolution S rotors are machined and fully ground from Stainless Steel that exhibits 48% greater yield strength at 1,000° F compared to carbon steel- further maintaining rotor integrity
• Stainless steel Evolution S rotors are highly resistant to heat and corrosion
• Unique Aero Slot design reduces rotating weight and promotes even heat dissipation- compared to common round drilled holes
• Scalloped design further reduces rotating weight
• 11.250″ OD / .355″ thickness (Discard at .312″)

Register Ring
• Adapts brake rotor to OEM hub register
• Positions rotor for proper caliper alignment

Two Piston Billet Evolution 2 Caliper – B2570
• Compliance decreases 5% vs Pro Series
• Computer finite element analysis (FEA) optimized and field-tested caliper
• Evolution 2 design improves piston retraction, pedal feel, and stiffness
• High retraction piston and O-ring design to eliminate drag during acceleration
• Results in improved pad wear and exemplary braking efficiency
• Stainless steel pistons mitigate heat transfer to brake fluid
• Reverse dish pressure vessel piston maximizes stiffness
• Pistons are 1.750″ for increased clamping force

DTC-30 Semi Metallic Brake Pads – B2510
• Best compound suited for front application
• Excellent cold holding capabilities

Aluminum Caliper Mounts
• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance

All Necessary Mounting Hardware

Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings

Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque fitting to 25 ft lbs
