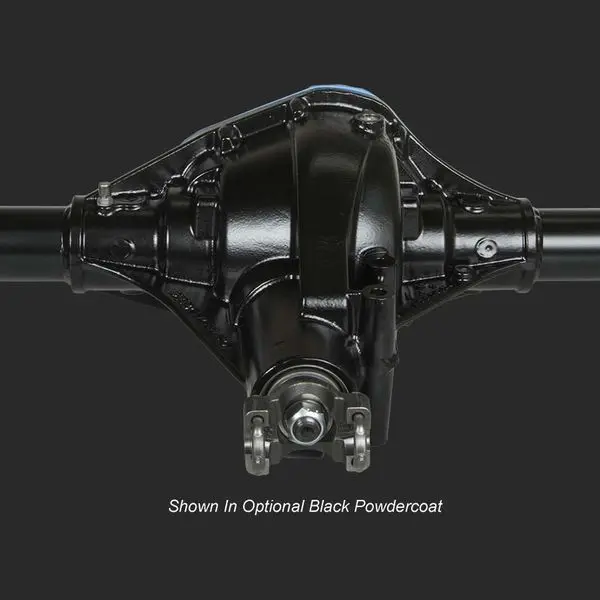

S60 Rear End
$2,695.00
-
STRANGE ENGINEERING S60 Rear Axle for 4th Gen Camaro & Firebird 1993 to 2002
This package starts off as S60 Rear End/F Body/Spool/35 Spline Pro Race Axles/F Body Mounts
Custom made to your specifications
Factory or custom widths available at no additional charge
Choice of housing ends
Professionally welded & assembled
Crated to protect your investment – Aftermarket Torque Arm may need to be modified
Stock Driveshaft will need to be replaced
Assembly Includes:

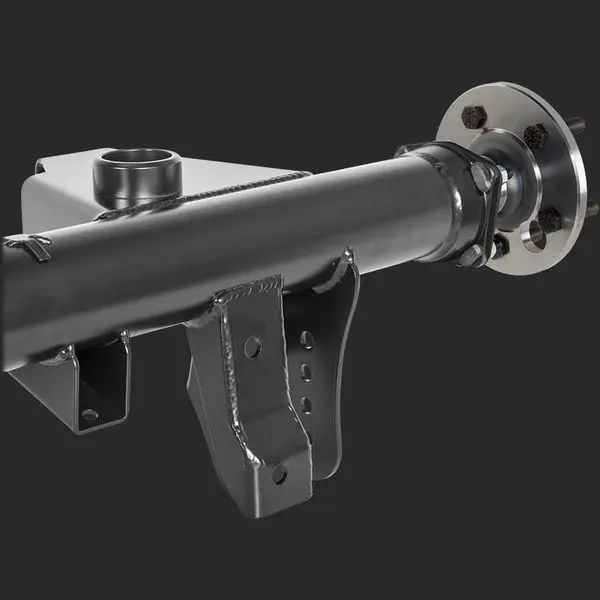

S60 Housing with F Body Mounts installed
35 Spline Alloy Axle Package
4 3/4″ Bolt Circle
Choice of Wheel Stud Kit
Selection of Gear Ratio
S-Series Pinion Yoke
Pinion Yoke U-Bolt Kit
Dana / Spicer Steel Cover
Extended Sway Bar Link Kit
Fully crated – No extra charge
Options for additional charge:
T-Bolt Brake Hardware Kit (easy install of your stock F Body Backing Plates)
40 Spline upgraded Axles (Gun Drilled)
35 Spline Street Strip Axles
5/8″ Wheel Studs
Powder Coat
Differential being used (instead of spool)
Please call or email us for pricing & estimated time:
We offer full bolt in assemblies
International shipping* Our website will not calculate duties/taxes/shipping/broker setups
Important Information:
Axles are shipped with no bearings on them. Your stock backing plate needs to go on first, then the bearings get pressed on behind them. Make sure you are sent the thin rear end spacer before bolting on your stock brakes.
** NOTE – SHIPPING CHARGES FOR THIS REAR END ARE $399.00**
| Powder Coat | Gloss Black, Gloss Red, Semi Gloss Black |
|---|---|
| Model Year | 1993 – 1997, 1998 – 2002 |
| Axle Splines | 28 Moser Axles, 28 Strange Engineering Axles, 31 Spline Moser Axles, 31 Strange Engineering Axles, 35 Spline Moser Axles, 35 Spline Strange Engineering Axles, 40 Spline Strange Engineering |
| ABS | 4 channel ABS ring, None |
| Back Brace | None, Yes |
| Wheel Studs (Screw In) | 1/2″ Wide – 2″ Long, 1/2″ Wide – 3″ Long, 12MM (Stock), 5/8″ Wide – 3″ Long |
| Fill & Drain Plug | Both Fill & Drain, Drain, Large Billet Fill, None |
| Housing Ends | Billet Big Bearing New Style, Billet Big Bearing Old Style, Billet Symmetrical Ends, Flush Mount GM (Can Use Stock F-Body Brakes) |
| Sway Bar Brackets | None, Yes |
| Rear End Length | 1″ Shorter (Each Side), 1/2″ Shorter (Each Side), 2″ Shorter (Each Side), 3″ Shorter (Each Side), Stock Width |
